| Place of Origin: | China |
|---|---|
| Brand Name: | Kaideli |
| Certification: | CE,ISO9001-2008 |
| Model Number: | KGHM/FNHM |
| Minimum Order Quantity: | 1 Piece |
| Price: | $100.00 - $2,000.00/sets |
| Packaging Details: | Wood box packing |
| Delivery Time: | 10-15 days |
| Payment Terms: | TT,LC,Western Union |
| Supply Ability: | 5000 Set/Sets per Month |
| Applicable Industries: | Hotels, Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Retail, Food Shop, Construction Works , Food & Beverage Shops | Showroom Location: | Viet Nam, Philippines, Mexico, Thailand, Kazakhstan, Nigeria, Uzbekistan, Tajikistan |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Type: | Condenser, V/W/H/L | Application: | Refrigeration Parts |
| Warranty: | 1 Year | Product Type: | Condenser |
| Color: | Option (White,green,black) | Coling Capacity: | 6kw-227kw |
| Test: | 3.0Mpa | Fin Space: | 2.0-3.0mm |
| After Warranty Service: | Online Support | Local Service Location: | None |
| After-sales Service Provided: | Field Installation, Commissioning And Training, No After-sales Service, Online Support | Port: | Ningbo/Shanghai/Guangzhou |
| Conditon: | New | ||
| High Light: | Aluminum Fin Cold Room Condenser,Copper Tube Cold Room Condenser,Aluminum Fin compressor cold storage |
||
Product name: Aluminum Fin Copper Tube Cold Room Condenser Compressor Cold Storage Air Conditioning

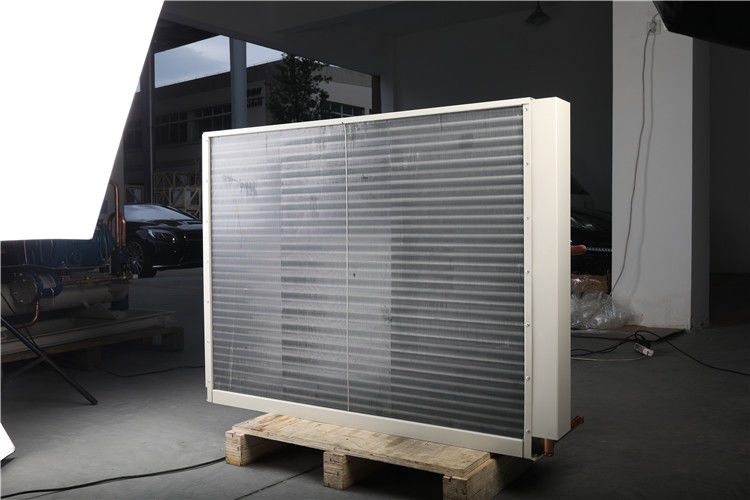

1.Condenser pictures
This energy saving condenser have four type H/V/L/U and color grey or green:
2.Specification
Nomination:KGHM004-L1/A
K(Kaideli)G(new generation high efficiency)HM(flat flow type)/VT(up flow V type)/VK(up flow cabin V type)/MK(mini cabin type)/UK(up flow U cabin type)
004(heat exchange capacity)-L(pipeline from left)1/2/3/4(motor quantity)A(design type)
| H type condenser based on environmental temp 32 degree and condensing temp 45 degree | |||||||||
| Model | Capacity | Capacity | Volumn | Fan power | Air flow | Fanφ | Inlet | Outlet | Weight |
| R22(kw) | R404(kw) | (l) | (w) | (m³/h) | (mm) | (mm) | (mm) | (kg) | |
| KGHM004-L1/A | 4.4 | 4 | 1 | 129 | 2034 | 350 | 19 | 16 | 16.5 |
| KGHM005-L1/A | 5 | 4.5 | 1.2 | 129 | 2154 | 350 | 19 | 16 | 18.5 |
| KGHM007-L1/A | 6.7 | 6 | 1.5 | 180 | 3196 | 400 | 19 | 16 | 21 |
| KGHM008-L1/A | 7.8 | 7.1 | 1.9 | 180 | 3017 | 400 | 19 | 16 | 23 |
| KGHM010-L1/A | 9.9 | 8.9 | 2 | 250 | 4051 | 450 | 19 | 16 | 34 |
| KGHM012-L1/A | 12.2 | 11 | 2.3 | 390 | 5119 | 500 | 19 | 16 | 37 |
| KGHM015-L2/A | 15.2 | 13.7 | 3.1 | 2×180 | 5898 | 400 | 19 | 16 | 40 |
| KGHM017-L2/A | 16.6 | 15 | 3.7 | 2×180 | 6148 | 400 | 22 | 19 | 45 |
| KGHM019-L2/A | 18.7 | 16.9 | 4.4 | 2×180 | 6632 | 400 | 22 | 19 | 50 |
| KGHM022-L4/A | 21.5 | 19.5 | 5.1 | 4×129 | 8856 | 350 | 25 | 22 | 72 |
| KGHM025-L2/A | 24.9 | 22.5 | 5.5 | 2×250 | 9190 | 450 | 25 | 19 | 60 |
| KGHM029-L2/A | 28.6 | 25.9 | 5.9 | 2×390 | 11082 | 500 | 25 | 22 | 66 |
| KGHM033-L4/A | 33.7 | 29.9 | 7.3 | 4×180 | 12304 | 400 | 25 | 22 | 85 |
| KGHM036-L4/A | 36.5 | 33.1 | 9.1 | 4×180 | 13024 | 400 | 32 | 25 | 95 |
| KGHM044-L2/A | 43.9 | 39.8 | 10.1 | 2×600 | 15794 | 550 | 32 | 25 | 105 |
| KGHM047-L4/A | 47.1 | 42.7 | 10.6 | 4×250 | 15840 | 450 | 32 | 25 | 130 |
| KGHM055-L4/A | 55.8 | 50.4 | 11.4 | 4×390 | 21804 | 500 | 32 | 25 | 130 |
| KGHM061-L4/A | 60.2 | 54.6 | 14 | 4×390 | 20708 | 500 | 32 | 25 | 140 |
| V single type condenser based on environmental temp 32 degree and condensing temp 45 degree | |||||||||
| Model | Capacity | Capacity | Volumn | Fan power | Air flow | Fanφ | Inlet | Outlet | Weight |
| R22(kw) | R404(kw) | (l) | (w) | (m³/h) | (mm) | (mm) | (mm) | (kg) | |
| KGVT027-L2/A | 27.5 | 25 | 7.9 | 2×250 | 9922 | 450 | 2×25 | 2×19 | 115 |
| KGVT039-L2/A | 39.6 | 35.7 | 9.7 | 2×600 | 15584 | 550 | 2×32 | 2×25 | 132 |
| KGVT042-L2/A | 42.5 | 38.4 | 11.3 | 2×600 | 15988 | 550 | 2×32 | 2×25 | 150 |
| KGVT047-L3/A | 47.4 | 42.8 | 12 | 3×780 | 19064 | 600 | 2×32 | 2×25 | 157 |
| KGVT056-L2/A | 56.8 | 50.8 | 13.2 | 2×800 | 22830 | 630 | 2×32 | 2×25 | 167 |
| KGVT059-L2/A | 59.2 | 53.1 | 14.1 | 2×800 | 23084 | 630 | 2×32 | 2×25 | 175 |
| KGVT062-L2/A | 62.7 | 56.9 | 16.2 | 2×800 | 23536 | 630 | 2×32 | 2×25 | 192 |
| KGVT074-L3/A | 73.9 | 67 | 17.5 | 3×780 | 28928 | 600 | 2×32 | 2×28 | 211 |
| KGVT085-L3/A | 85.7 | 76.6 | 18.9 | 3×800 | 34020 | 630 | 2×32 | 2×28 | 233 |
| KGVT093-L3/A | 93.5 | 84.2 | 24 | 3×800 | 35112 | 630 | 2×42 | 2×32 | 273 |
| KGVT098-L3/A | 97.9 | 88.8 | 26.9 | 3×800 | 35388 | 630 | 2×42 | 2×32 | 282 |
| KGVT102-L3/A | 102.2 | 94.2 | 30 | 3×800 | 35896 | 630 | 2×42 | 2×32 | 299 |
| KGVT132-L4/A | 132.9 | 120.9 | 36.4 | 4×800 | 47716 | 630 | 2×54 | 2×32 | 365 |
| V box type condenser based on environmental temp 32 degree and condensing temp 45 degree | |||||||||
| Model | Capacity | Capacity | Volumn | Fan power | Air flow | Fanφ | Inlet | Outlet | Weight |
| R22(kw) | R404(kw) | (l) | (w) | (m³/h) | (mm) | (mm) | (mm) | (kg) | |
| KGVK027-L2/A | 27.5 | 25 | 7.9 | 2×250 | 9922 | 450 | 25 | 19 | 115 |
| KGVK039-L2/A | 39.6 | 35.7 | 9.7 | 2×600 | 15584 | 550 | 32 | 25 | 132 |
| KGVK042-L2/A | 42.5 | 38.4 | 11.3 | 2×600 | 15988 | 550 | 32 | 25 | 150 |
| KGVK047-L3/A | 47.4 | 42.8 | 12 | 3×780 | 19064 | 600 | 32 | 25 | 157 |
| KGVK056-L2/A | 56.8 | 50.8 | 13.2 | 2×800 | 22830 | 630 | 32 | 25 | 167 |
| KGVK059-L2/A | 59.2 | 53.1 | 14.1 | 2×800 | 23084 | 630 | 32 | 25 | 175 |
| KGVK062-L2/A | 62.7 | 56.9 | 16.2 | 2×800 | 23536 | 630 | 32 | 25 | 192 |
| KGVK074-L3/A | 73.9 | 67 | 17.5 | 3×780 | 28928 | 600 | 32 | 28 | 211 |
| KGVK085-L3/A | 85.7 | 76.6 | 18.9 | 3×800 | 34020 | 630 | 32 | 28 | 233 |
| KGVK093-L3/A | 93.5 | 84.2 | 24 | 3×800 | 35112 | 630 | 42 | 32 | 273 |
| KGVK098-L3/A | 97.9 | 88.8 | 26.9 | 3×800 | 35388 | 630 | 42 | 32 | 282 |
| KGVK102-L3/A | 102.2 | 94.2 | 30 | 3×800 | 35896 | 630 | 42 | 32 | 299 |
| KGVK132-L4/A | 132.9 | 120.9 | 36.4 | 4×800 | 47716 | 630 | 54 | 32 | 365 |
| L type condenser based on environmental temp 32 degree and condensing temp 45 degree | |||||||||
| Model | Capacity | Capacity | Volumn | Fan power | Air flow | Fan φ | Inlet | Outlet | Weight |
| R22(kw) | R404(kw) | (l) | (w) | (m³/h) | (mm) | (mm) | (mm) | (kg) | |
| KGMK007-L1/B | 7.5 | 6.71 | 1.2 | 250 | 5114 | 450 | 10 | 16 | 42 |
| KGMK009-L2/B | 8.83 | 7.94 | 1.5 | 250 | 5004 | 450 | 10 | 16 | 43 |
| KGMK010-L3/B | 10.3 | 9.27 | 1.9 | 250 | 4771 | 450 | 10 | 16 | 45 |
| KGMK015-L4/B | 15.2 | 13.6 | 2.2 | 2×250 | 10114 | 450 | 12 | 19 | 62 |
| KGMK016-L5/B | 16.3 | 14.7 | 2.5 | 2×250 | 10009 | 450 | 12 | 19 | 63 |
| KGMK018-L6/B | 18.7 | 16.8 | 3 | 2×250 | 9628 | 450 | 12 | 19 | 65 |
| U type condenser based on environmental temp 32 degree and condensing temp 45 degree | |||||||||
| Model | Capacity | Capacity | Volumn | Fan power | Air flow | Fan φ | Inlet | Outlet | Weight |
| R22(kw) | R404(kw) | (l) | (w) | (m³/h) | (mm) | (mm) | (mm) | (kg) | |
| KGUK017-L1/A 17.0 | 15.3 | 3.2 | 600 | 8539 | 550 | 22 | 16 | 88 | |
| KGUK018-L2/A 17.9 | 16.2 | 4.3 | 2×180 | 7592 | 400 | 28 | 19 | 107 | |
| KGUKO23-L2/A | 23.5 | 21.2 | 5 | 2×250 | 10505 | 450 | 28 | 19 | 132 |
| KGUK030-L2/A 30.6 | 27.6 | 6.2 | 2×390 | 12736 | 500 | 28 | 22 | 144 | |
| KGUK033-L2/A 33.8 | 30.6 | 7.1 | 2×600 | 13026 | 500 | 28 | 22 | 151 | |
| KGUK41-L2/A | 41.5 | 37.6 | 8.5 | 2×600 | 16225 | 550 | 28 | 22 | 166 |
| KGUKO51-L2/A | 51.3 | 46.4 | 10.5 | 2×780 | 19986 | 600 | 28 | 25 | 200 |
| KGUKO53-L2/A | 53.5 | 48.5 | 11.6 | 2×780 | 20165 | 600 | 35 | 25 | 204 |
Customized specification leave me message for details.
3.Want to know other related products?-click picture for detailed specification
4.How to assure quality? Any procedure?
Our QC department will make sure of each step
5.Do you factory?
We are factory established in 1995 and through 28years developed,welcomed by all our customers.Because of all your support now we are a big family of more than 300 people,covered 50000 square meters,and your supporting is very important of continuing our dream of eating fresh and healthy food.
6.Do you attend exhibition?
Each year we will attend domestic national and foreign exhibition,also we will support our agent to attend exhibition,welcome to join us.
7.Why choose us
Professional:28 years focus one thing-refrigeration equipments
Material we use sufficient
Certificate:CE, ISO, and cetiifcate of producing special pressure equipment
8.Projects reference?
9.FAQ
1, Q:Where is your factory address?
A:We are factory and located in refrigeration equipment producing base Shengzhou,Zhejiang province.
2, Q: What is your package?
A: Our package comply to custom require not include original wood.
3, Q:What is your MOQ?
A: Ordinary products can order from 1 set.
4, Q: Can you offer sample?
A: Yes,we can offer sample.and cost and delivery at your charge.
5, Q:I can't find products on your list?
A: Please contact me directly.
6,Q:How can i confirm your factory?
A: We have third party verified document of Bureau Veritas report,you can download in company page or leave me message to get.
