Place of Origin:
China
Brand Name:
Kaideli
Certification:
CE,ISO9001-2008
Model Number:
ED series

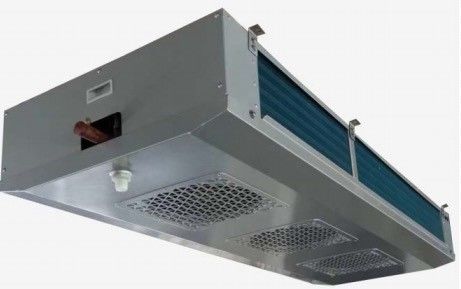

ED SERIES INDUSTRIAL DUAL-DISCHARGE UNIT COOLERS
1. Product description:
ED series industrial air cooler adopts the structure of air inlet from the bottom and air outlet from the two sides. It is mainly used for those cold storage with small height size of storage or production cold room that is not suitable for direct blowing.
This series of products have the following characteristics:
● Casing: high quality galvanized steel with silver powder coating (RAL7001) , it has strong anti-corrosion property; The outer water plate adopt hinge structure, convenient and quick operation.
● Evaporator end plate adopts aluminum plate, effectively protect copper tube, reduce weight.
● Double water plate design: the outer water plate adopts angular structure, smooth drainage, no drainage dead angle; The inner water tray adopts the flume structure of aluminum plate. The condensed water or defrosted water is directly discharged into the outlet of the outer water tray through the inner water tray.
● Coil:copper pipe φ15, tube spacing 50×50 square arrangement, heat transfer area is large, heat transfer temperature difference is small, fin frosting speed is slow.
● Corrugated aluminum fins with hydrophilic film, fin spacing of 4.0 and 6.0mm and 9.0mm to meet the different temperature requirements of cold storage.
● Fan: high-power external rotor fan of blower, operating temperature -30℃~60℃; Fan specifications φ450,φ500, the formation of different specifications of the product series, users have more choices.
● Defrosting:standard electric heating defrosting, stainless steel heating pipe are distributed on the coil tube fin and inner water plate, has a good defrosting effect. You can also choose hot gas defrost according to customer requirements.
● IP65 grade waterproof junction box and waterproof connector, the fan and heating pipe adopt independent wire box ,with better waterproof effect, high reliability.
● The outlet of the air cooler is equipped with schrader alve, which is convenient for users to detect pressure.
● Strict factory pressure test, test pressure 23bar.
● Expansion valve can be pre-installed according to customer requirements.
● It can meet refrigerant for R404A,R507A,R448A,R449A,R134a,R22 etc.
2. Standard configuration and options:
| Parts | Configuration | Parts | Configuration | ||
| Casing | Al-Mg alloy sheet with powder coating | × | Defrosting | Air defrosting | ○ |
| sheet with powder coating | ○ | Electric heating pipe | ● | ||
| Galvanized sheet with powder coating | ● | Hot gas | ○ | ||
| Stainless steel plate | ○ | Expansion valve | ○ | ||
| Fan | WEIGUANG motor | ● | Drainpipe hot wire | ○ | |
| EBM motor | ○ | Wind duct heating belt | × | ||
| The wind bucket motor | × | ||||
| Fin | Aluminum fins | ○ | |||
| Hydrophilic aluminum fins | ● | ||||
●:Standard；○:Options；×:Do not choose.
3. Technical data sheet:
3.1 Fin Spacing 4.0mm
| Model |
Capacity/R404A (KW) |
Surface | Tube volume | Airflow | Airthrow | Connection pipe | Weight | |||
|
Tc=0℃ ΔΤ=8K |
Tc=10℃ ΔΤ=10K |
m2 | dm3 | m3/h | m | Inlet | Outlet | Drain | kg | |
| ED451/DL-ET | 6.3 | 9.3 | 35.0 | 4.8 | 4500 | 2×6 | φ12 | φ22 | 2×G1” | 73 |
| ED452/DL-ET | 12.6 | 18.5 | 70.0 | 8.8 | 9000 | 2×8 | φ16 | φ22 | 2×G1” | 114 |
| ED453/DL-ET | 18.9 | 27.8 | 105.0 | 12.9 | 13500 | 2×10 | φ16 | φ28 | 2×G1.5” | 155 |
| ED454/DL-ET | 25.2 | 37.0 | 140.0 | 17.0 | 18000 | 2×12 | φ16 | φ35 | 2×G1.5” | 196 |
| ED501/DL-ET | 8.9 | 13.0 | 52.5 | 6.8 | 6000 | 2×7 | φ12 | φ22 | 2×G1” | 89 |
| ED502/DL-ET | 17.8 | 26.1 | 105.0 | 12.9 | 12000 | 2×9 | φ16 | φ28 | 2×G1.5” | 145 |
| ED503/DL-ET | 26.8 | 39.4 | 157.5 | 19.0 | 18000 | 2×11 | φ22 | φ42 | 2×G1.5” | 201 |
| ED504/DL-ET | 35.7 | 52.5 | 210.0 | 25.0 | 24000 | 2×13 | φ22 | φ42 | 2×G1.5” | 257 |
3.2 Fin spacing 6.0mm
| Model |
Capacity/R404A (KW) |
Surface | Tube volume | Airflow | Airthrow | Connection pipe | Weight | |||
|
Tc=0℃ ΔΤ=8K |
Tc=-18℃ ΔΤ=7K |
m2 | dm3 | m3/h | m | Inlet | Outlet | Drain | kg | |
| ED451/DD-ET | 4.9 | 3.9 | 23.7 | 4.8 | 5000 | 2×6 | φ12 | φ22 | 2×G1” | 71 |
| ED452/DD-ET | 9.7 | 7.7 | 47.5 | 8.8 | 10000 | 2×8 | φ16 | φ22 | 2×G1” | 110 |
| ED453/DD-ET | 14.6 | 11.6 | 71.2 | 12.9 | 15000 | 2×10 | φ16 | φ28 | 2×G1.5” | 149 |
| ED454/DD-ET | 19.5 | 15.6 | 94.9 | 17.0 | 20000 | 2×12 | φ16 | φ35 | 2×G1.5” | 188 |
| ED501/DD-ET | 6.8 | 5.4 | 35.6 | 6.8 | 6300 | 2×7 | φ12 | φ22 | 2×G1” | 86 |
| ED502/DD-ET | 13.5 | 10.8 | 71.2 | 12.9 | 12600 | 2×9 | φ16 | φ28 | 2×G1.5” | 139 |
| ED503/DD-ET | 20.3 | 16.2 | 106.8 | 19.0 | 18900 | 2×11 | φ22 | φ42 | 2×G1.5” | 192 |
| ED504/DD-ET | 27.0 | 21.6 | 142.4 | 25.0 | 25200 | 2×13 | φ22 | φ42 | 2×G1.5” | 246 |
3.3 Fin spacing 9.0mm
| Model |
Capacity/R404A (KW) |
Surface | Tube volume | Airflow | Airthrow | Connection pipe | Weight | |||
|
Tc=0℃ ΔΤ=8K |
Tc=-18℃ ΔΤ=7K |
m2 | dm3 | m3/h | m | Inlet | Outlet | Drain | kg | |
| ED451/DJ-ET | 3.8 | 3.0 | 16.2 | 4.8 | 5400 | 2×7 | φ12 | φ22 | 2×G1” | 71 |
| ED452/DJ-ET | 7.6 | 6.1 | 32.5 | 8.8 | 10800 | 2×9 | φ16 | φ22 | 2×G1” | 109 |
| ED453/DJ-ET | 11.4 | 9.1 | 48.7 | 12.9 | 16200 | 2×11 | φ16 | φ28 | 2×G1.5” | 148 |
| ED454/DJ-ET | 15.2 | 12.2 | 65.0 | 17.0 | 21600 | 2×13 | φ16 | φ35 | 2×G1.5” | 186 |
| ED501/DJ-ET | 5.7 | 4.6 | 24.6 | 6.8 | 6900 | 2×8 | φ12 | φ22 | 2×G1” | 85 |
| ED502/DJ-ET | 11.2 | 9.0 | 48.7 | 12.9 | 13800 | 2×10 | φ16 | φ28 | 2×G1.5” | 138 |
| ED503/DJ-ET | 16.8 | 13.4 | 73.1 | 19.0 | 20700 | 2×12 | φ22 | φ42 | 2×G1.5” | 190 |
| ED504/DJ-ET | 22.4 | 17.9 | 97.5 | 25.0 | 27600 | 2×14 | φ22 | φ42 | 2×G1.5” | 243 |
1. In the table ,Tc is cold room temperature, ΔΤ is difference between cold room temp. and evaporation temp.
2. The airthrow is 0.5m/s air arrived distance at ambient temperature.
3. For cooling capacity of other working conditions, please refer to the correction coefficient.
4. Electrical parameter table:
| Model | Fan motor | Electric defrosting | |||||
| Voltage(V) | Power(W) | Current(A) | Speed(r/min) | Coil(KW) | Tray(KW) | Total(KW) | |
| ED451* | 380-3 | 370 | 0.75 | 1380 | 4×0.6 | 2×0.6 | 3.6 |
| ED452* | 380-3 | 740 | 1.5 | 1380 | 4×1.1 | 2×1.1 | 6.6 |
| ED453* | 380-3 | 1110 | 2.25 | 1380 | 4×1.6 | 2×1.6 | 9.6 |
| ED454* | 380-3 | 1480 | 3.0 | 1380 | 4×2.0 | 2×2.0 | 12.0 |
| ED501* | 380-3 | 500 | 0.95 | 1380 | 4×0.8 | 2×0.8 | 4.8 |
| ED502* | 380-3 | 1000 | 1.9 | 1380 | 4×1.6 | 2×1.6 | 9.6 |
| ED503* | 380-3 | 1500 | 2.85 | 1380 | 4×2.3 | 2×2.3 | 13.8 |
| ED504* | 380-3 | 2000 | 3.8 | 1380 | 4×3.0 | 2×3.0 | 18.0 |
5.How to select correct evaparator:
Generally,Choose evaporator capacity=cold room cooling capacity *1.15
1.When the cold room temperature is around 0℃, select 4.5mm as fin space.
Evaporator choose=1.0*Q0
2.When the cold room temperature is around -18℃, select 6mm as fin space.
Evaparator choose=1.1*Q0
3.When the cold room temperature is around -25℃, select 9mm as fin space.
Evaparator choose=1.27*Q0
Remarks: The water defrost and hot gas defrost type are also optional.
Customized specification leave me message for details.
