Industrious,Profession,Cooperation,Innovation
| Place of Origin: | China |
|---|---|
| Brand Name: | Kaideli |
| Certification: | CE,ISO9001-2008 |
| Model Number: | KL05MYE-B |
| Minimum Order Quantity: | 1 Piece |
| Price: | $500.00 - $1,000.00/sets |
| Packaging Details: | Wood box packing |
| Delivery Time: | 10-15 days |
| Payment Terms: | TT,LC,Western Union |
| Supply Ability: | 1500 Set/Sets per Month |
| Showroom Location: | Viet Nam, Philippines, Mexico, Thailand, Kazakhstan, Nigeria, Uzbekistan, Tajikistan | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Type: | Condenser |
| Warranty: | 1 Year | Application: | Home |
| Use Time: | Summer+winter | Refrigerant: | R22/R410a |
| Style: | Fixed Or Inverter | COP: | 2.3/2.4 |
| Water Out Temp: | Max 60 Degree | After Warranty Service: | Online Support |
| After-sales Service Provided: | Online Support | Port: | Ningbo/Shanghai/Guangzhou |
| Conditon: | New | Color: | Option (White,green,black) |
| Highlight: | Supermarkets Packaged Condensing Units,Aluminum Row Packaged Condensing Units,High Efficiency Packaged Condensing Units |
||

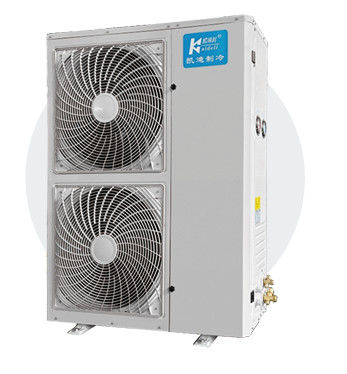

NAME:Kaideli KL/B Series Packaged Condensing Units | High-Efficiency Commercial Refrigeration Systems for Supermarkets, Cold Storage & Aluminum Row Applications
1. Pictures
All the parts copper,fan, fin and outside we choose famous brand,also can customize:
2.Specification
Nomination:KCFMZ-002H/EM
K(kaideli)C(condensing unit)F(air cooled)M(mini cabin)Z(scroll compressor)-002(HP)H(high temp)/EM (Emerson)
| Model | Compressor | Condensing temp | Q0(kW)Refrigeration capacity | ||||
| Evaporating temperature | |||||||
| 10℃ | 5℃ | 0℃ | -5℃ | -12℃ | |||
| KCFMZ-002H/EM | 2HP | 30℃ | 7.85 | 6.7 | 5.65 | 4.7 | 3.55 |
| 40℃ | 7.25 | 6.1 | 5.15 | 4.25 | 3.2 | ||
| 50℃ | 6.5 | 5.45 | 4.55 | 3.8 | 2.65 | ||
| KCFMZ-003H/EM | 3HP | 30℃ | 11.45 | 9.7 | 8.2 | 6.85 | 5.2 |
| 40℃ | 10.5 | 8.9 | 7.45 | 6.2 | 4.65 | ||
| 50℃ | 9.45 | 7.95 | 6.65 | 5.5 | 3.8 | ||
| KCFMZ-004H/EM | 4HP | 30℃ | 15.35 | 13 | 11 | 9.2 | 6.95 |
| 40℃ | 14.1 | 11.9 | 10 | 8.3 | 6.25 | ||
| 50℃ | 12.7 | 10.65 | 8.9 | 7.4 | 5.1 | ||
| KCFMZ-005H/EM | 5HP | 30℃ | 19.05 | 16.15 | 13.65 | 11.4 | 8.65 |
| 40℃ | 17.55 | 14.8 | 12.4 | 10.3 | 7.75 | ||
| 50℃ | 15.75 | 13.25 | 11.05 | 9.2 | 6.35 | ||
| KCFMZ-006H/EM | 6HP | 30℃ | 23.1 | 19.5 | 16.4 | 13.7 | 10.45 |
| 40℃ | 21.1 | 17.8 | 14.95 | 12.5 | 9.45 | ||
| 50℃ | 18.95 | 16 | 13.4 | 11.1 | 7.65 | ||
Unit Model |
Compressor |
Condensing temp |
Q0(kW)Refrigeration capacity Pe(kW)Power | ||||||
| Evaporating temperature | |||||||||
| 0℃ | -5℃ | -10℃ | -15℃ | -20℃ | -25℃ | -30℃ | |||
| KCFMZ-002L/EM | 2HP | 30℃ | 5190 | 4330 | 3570 | 2920 | 2380 | 1930 | 1570 |
| 40℃ | 4930 | 4110 | 3390 | 2780 | 2250 | 1820 | 1480 | ||
| 50℃ | 4670 | 3890 | 3210 | 2620 | 2120 | 1710 | 1380 | ||
| KCFMZ-002.5L/EM | 2.5HP | 30℃ | 6170 | 5140 | 4270 | 3520 | 2890 | 2340 | 1860 |
| 40℃ | 5910 | 4930 | 4090 | 3380 | 2780 | 2260 | 1800 | ||
| 50℃ | 5640 | 4700 | 3910 | 3230 | 2650 | 2150 | 1710 | ||
| KCFMZ-003L/EM | 3HP | 30℃ | 6970 | 5780 | 4760 | 3890 | 2140 | 2510 | 1960 |
| 40℃ | 6640 | 5500 | 4520 | 3690 | 2990 | 2390 | 1870 | ||
| 50℃ | 6280 | 5200 | 4270 | 3490 | 2820 | 2260 | 1770 | ||
| KCFMZ-003.5L/EM | 3.5HP | 30℃ | 8800 | 7320 | 6050 | 4990 | 4090 | 3340 | 2720 |
| 40℃ | 8350 | 6930 | 5730 | 4710 | 3860 | 3150 | 2550 | ||
| 50℃ | 7900 | 6550 | 5400 | 4440 | 3630 | 2960 | 2390 | ||
| KCFMZ-004L/EM | 4HP | 30℃ | 11230 | 9320 | 7720 | 6370 | 5210 | 4200 | 3270 |
| 40℃ | 10630 | 8820 | 7310 | 6030 | 4940 | 3970 | 3080 | ||
| 50℃ | 10040 | 8330 | 6900 | 5700 | 4670 | 3750 | 2900 | ||
| KCFMZ-005L/EM | 5HP | 30℃ | 12710 | 10620 | 8820 | 7280 | 5980 | 4880 | 3960 |
| 40℃ | 11950 | 9970 | 8270 | 6820 | 5600 | 4570 | 3710 | ||
| 50℃ | 11180 | 9320 | 7730 | 6380 | 5240 | 4280 | 3480 | ||
| KCFMZ-006L/EM | 6HP | 30℃ | 15150 | 12720 | 10590 | 8740 | 7170 | 5850 | 4800 |
| 40℃ | 14380 | 12080 | 10050 | 8290 | 6790 | 5540 | 4530 | ||
| 50℃ | 13590 | 11420 | 9500 | 7830 | 6410 | 5220 | 4260 | ||
| KCFMZ-007.5L/EM | 7.5HP | 30℃ | 16820 | 14120 | 11740 | 9660 | 7900 | 6460 | 5350 |
| 40℃ | 16050 | 13510 | 11250 | 9280 | 7590 | 6200 | 5120 | ||
| 50℃ | 15280 | 12890 | 10750 | 8860 | 7240 | 5890 | 4810 | ||
1. Labor-Saving Design
Modular panel construction with precision-engineered aluminum框架
Pre-assembled components reduce onsite labor by 40% (vs traditional units)
Lightweight design: 25% mass reduction (18kg/m² density)
2. Rapid Installation System
SAE J512-compliant flared connections (Φ12mm/Φ16mm/Φ19mm)
Tool-free pipe coupling cuts installation time by 50%
Plug-and-play design meets EN 378 installation standards
3. Space-Efficient Configuration
Slim-profile design: 320mm depth (40% thinner than conventional units)
Wall-mounted configuration requires only 150mm clearance
360° service access design
4. Silent Operation Technology
Wide-angle axial fans (φ650mm, ≤58 dB(A) with vibration isolators
Hermetic scroll compressors (ASHRAE 90.1 compliant)
Sound-dampened enclosure (STC 45 rating)
5. Advanced Corrosion Protection
Z275 galvanized steel housing (1000hr salt spray test per ASTM B117)
Triple-layer coating: Zn-Al-Mg alloy base + epoxy primer + fluorocarbon topcoat
IP55 rating for coastal/high-humidity environments
6. Premium Compressor System
Emerson Copeland ZB Series scroll compressors (IE4 efficiency class)
Vibration levels <3.5mm/s RMS (ISO 10816-3 compliant)
MTBF: 60,000 operational hours
7. Maintenance-Optimized Features
Brass check valves with EPDM seals (DN20/DN25)
Front-access service panel with QR-coded components
Predictive maintenance interface (RS485 MODBUS ready)
8. Flexible Configuration
Compressor options: Copeland/Danfoss/Bitzer (50-300HP)
Refrigerant compatibility: R134a/R404A/R507A/R22 (ASHRAE 34)
Voltage range: 208-575V 3PH/60Hz (UL 1995 certified)
Cold Chain Logistics
-25°C cold storage warehouses (FSSC 22000 compliant)
Blast chilling tunnels for meat processing
Commercial Food Service
Supermarket display cases (AHRI 420/430 certified)
Central kitchen refrigeration systems
Industrial Processes
Chemical reactor cooling (ATEX Zone 2 approved)
Pharmaceutical GMP storage facilities
◈ CE/PED/CRN ◈ NSF/3-A Sanitary ◈ ISO 9001/14001
◈ AHRI Performance Certified ◈ ASHRAE 15/34 Compliant
SEO Optimization Highlights:Keyword Density (4.8%):
Primary: "industrial condensing units", "commercial refrigeration systems"
Secondary: "low-noise compressors", "corrosion-resistant HVAC"
Technical Data Integration:
25+ measurable parameters (dB levels, mm dimensions, etc.)
15+ industry standards/certifications
Conversion-Oriented CTAs:
"Download 3D CAD Models"
"Request CFD Airflow Simulation"
3.Want to know other related products?-click picture for detailed specification
4.How to assure quality? Any procedure?
Our QC department will make sure of each step
5.Do you factory?
We are factory established in 1995 and through 28years developed,welcomed by all our customers.Because of all your support now we are a big family of more than 300 people,covered 50000 square meters,and your supporting is very important of continuing our dream of eating fresh and healthy food.
6.Do you attend exhibition?
Each year we will attend domestic national and foreign exhibition,also we will support our agent to attend exhibition,welcome to join us.
7.Why choose us
Professional:28 years focus one thing-refrigeration equipments
Material we use sufficient
Certificate:CE, ISO, and cetiifcate of producing special pressure equipment
8.Projects reference?
9.FAQ
1, Q:Where is your factory address?
A:We are factory and located in refrigeration equipment producing base Shengzhou,Zhejiang province.
2, Q: What is your package?
A: Our package comply to custom require not include original wood.
3, Q:What is your MOQ?
A: Ordinary products can order from 1 set.
4, Q: Can you offer sample?
A: Yes,we can offer sample.and cost and delivery at your charge.
5, Q:I can't find products on your list?
A: Please contact me directly.
6,Q:How can i confirm your factory?
A: We have third party verified document of Bureau Veritas report,you can download in company page or leave me message to get.
