Place of Origin:
China
Brand Name:
Kaideli
Model Number:
CV

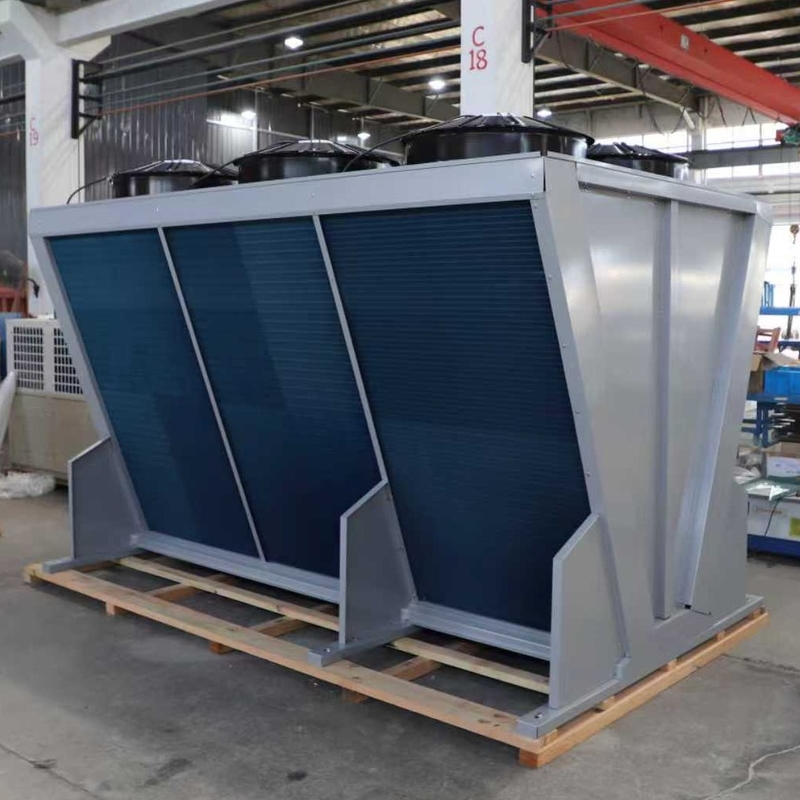

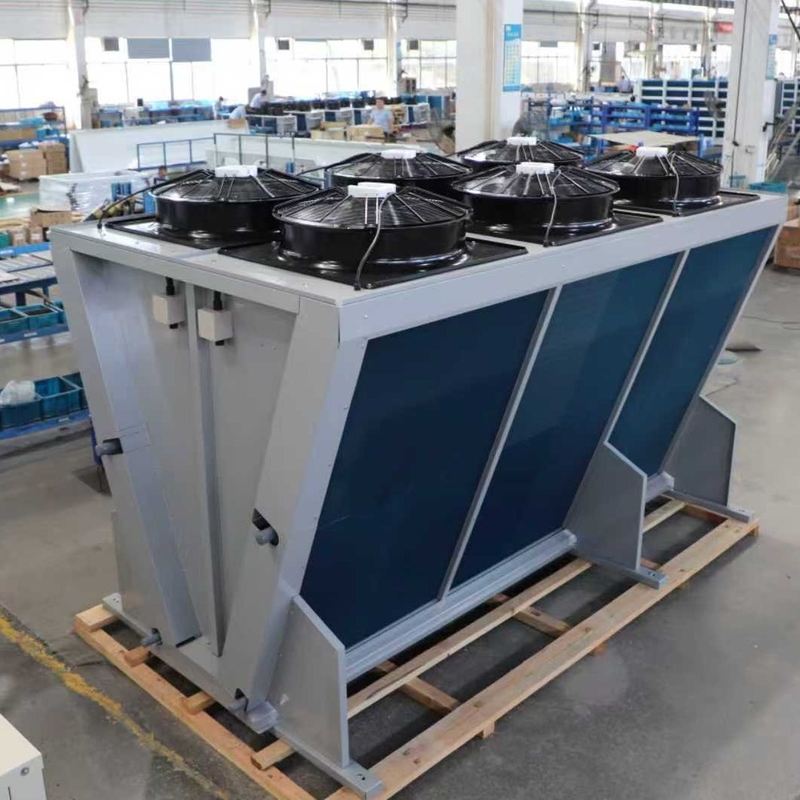

CP series horizontal V-type condenser product overview
CV series condenser is designed with V-shaped structure, air inlet on both sides and air outlet on top and larger windward area; it is mainly equipped with the remotely mounted pistons and parallel units or screw units requiring high heat exchange. This series of products has the following characteristics:
1.Enclosure: High-quality galvanized steel plate sprayed with powder coating (silver gray RAL9006); the fan tube is designed with overall stretching large rounded high air tube, it has the characteristics of excellent air guiding effect, low noise and aesthetic appearance.
2.Coil: Tube diameter φ9.5, female thread copper pipe, tube spacing 25×21.65 in triangular arrangement, high heat exchange efficiency.
3.Corrugated aluminum sheet made of hydrophilic aluminum foil is adopted, with the sheet spacing of 2.1mm;
4.Fan: It is designed with standard 3P/380V/50Hz power supply; 1-6 φ630 fans are adopted with 4-pole and 6-pole motors; the quantity of φ800 fans in single row ranges from 1 to 8, and from 4 to 16 in double rows, and the number of motor poles is 6.
5.The test pressure of the product is 32bar.
6.It is compatible with R404A, R507A, R448A, R449A, R134a, R22 and other refrigerants.
How to assure quality? Any procedure?
Our QC department will make sure of each step
Do you factory?
We are factory established in 1995 and through 30years developed,welcomed by all our customers.Because of all your support now we are a big family of more than 300 people,covered 50000 square meters,and your supporting is very important of continuing our dream of eating fresh and healthy food.
Why choose us
Professional:30years focus one thing-refrigeration equipments
Material we use sufficient
Certificate:CE, ISO, and cetiifcate of producing special pressure equipment
