Place of Origin:
China
Brand Name:
Kaideli
Model Number:
BB

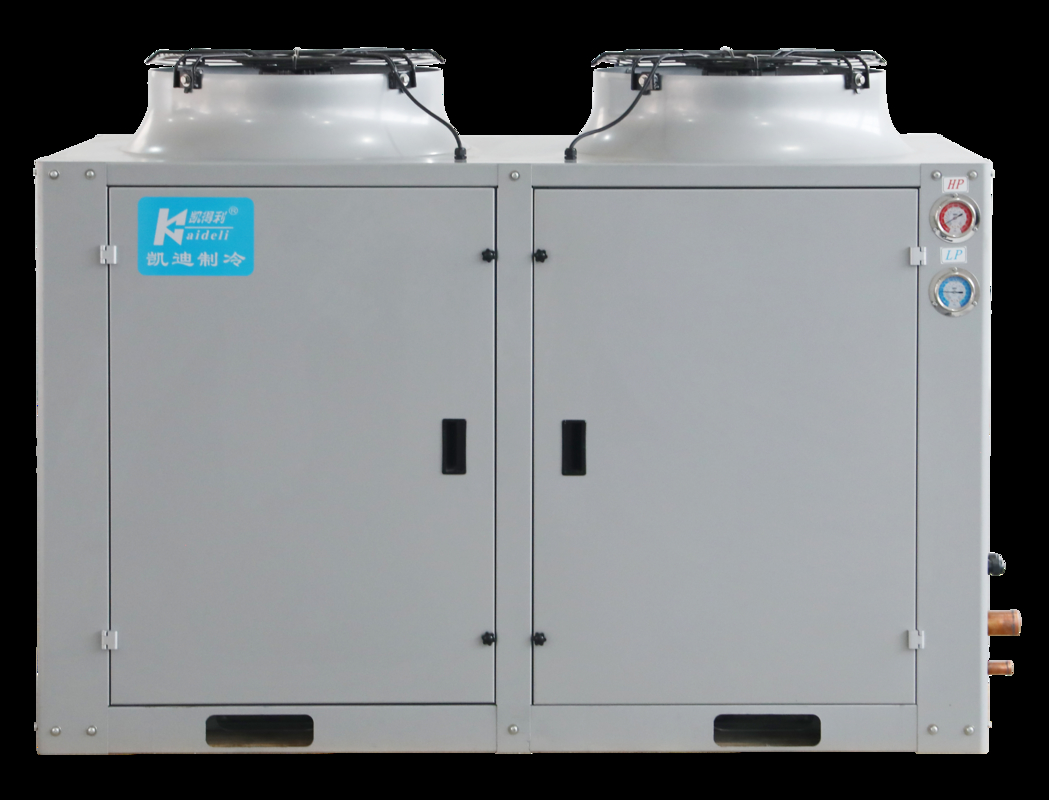

BB series box-type condensing unit product overview
BB series box-type condensing units are mainly developed for cold store applications,which have the following features:
1.The main component is the famous German Bitzer Ecolin series semi-hermetic piston compressor, which features high quality and high reliability.
2.The unit is designed for high temperature, medium temperature and low temperature applications, of which the high-temperature unit is used for the cold store of 8~15 °C, the medium-temperature is used for the cold store of -5~5 °C, and the low-temperature unit is used for the cold store of -15 ~ -35 °C.
3.It has a horizontal compact box-type structure, of which the enclosure is made of galvanized steel plate sprayed with powder coating in silver gray for excellent corrosion resistance,especially for outdoor installation and use;its chassis cover is connected with hinge structure, which is easy for operation and maintenance.
4.Designed with overall stretching large rounded high fan tube,it has the characteristics of excellent air guiding effect, low noise and aesthetic appearance.Its chassis cover is connected with hinge structure, which is easy for operation and maintenance.
5.The chassis panel is attached with honeycomb sound-insulation foam to effectively reduce the operating noise and sheet metal resonance of the unit.
6.The condenser is designed in U-shaped structure, with fewer pipes, large windward surface and high heat exchange efficiency.
7.Fitted with double fans in design, it can effectively reduce the noise of fan, facilitate condensing fan control and improve the operation reliability of the unit.
8.The wiring of electrical devices other than the compressor has been connected to the built-in terminal block of the unit, which is convenient for wiring.
9.It is compatible with R404A, R507A, R448, R449, R22 and other refrigerants.
Unit Configuration
Medium-temperature and high-temperature unit
| Components | Unit model BB | |||||||||
| 05H | 06H | 07H | 09H | 12H | 15H | 20H | ||||
| 05M | 06M | 07M | 09M | 12M | 15M | 20M | 25M | 30M | 35M | |
| Semi-hermetic compressor | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Oil heating band | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Exhaust damping pipe | ○ | ○ | ○ | ○ | ● | ● | ● | ● | ● | ● |
| Oil separator | ○ | ○ | ○ | ○ | ● | ● | ● | ● | ● | ● |
| Condenser (hydrophilic aluminum foil) | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| External rotor fan | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Reservoir | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Reservoir outlet shut-off valve | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Dry filter | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Sight glasses | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| High/low-pressure protection | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Electronic oil pressure(oil level)protection | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ● | ● | ● |
| High/low-pressure gauge | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Refrigerant solenoid valve | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
| High pressure control (fan control) | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
| Low pressure control (vent shutdown) | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
Low-temperature unit
| Components | Unit model BB | |||||||||
| 05LY | 06LY | 09LY | 12LY | 14LY | 18LY | 23LY | 28LY | 34LY | 44LY | |
| Semi-hermetic compressor | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Oil heating band | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Exhaust damping pipe | ○ | ○ | ● | ● | ● | ● | ● | ● | ● | ● |
| Oil separator | ○ | ○ | ● | ● | ● | ● | ● | ● | ● | ● |
| Condenser (hydrophilic aluminum foil) | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| External rotor fan | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Reservoir | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Reservoir outlet shut-off valve | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Dry filter | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Sight glasses | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| High/low-pressure protection | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Electronic oil pressure(oil level)protection | ○ | ○ | ○ | ○ | ○ | ● | ● | ● | ● | ● |
| High/low-pressure gauge | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Refrigerant solenoid valve | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
| High pressure control (fan control) | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
| Low pressure control (vent shutdown) | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
| Note:●Standard components,○ Optional component,/Not available | ||||||||||
Support and Services
Our Cold Room Condensing Unit product comes with comprehensive Product Technical Support and Services to ensure optimal performance and customer satisfaction. Our team of experts is available to provide assistance with installation, maintenance, troubleshooting, and any technical queries you may have. Additionally, we offer training programs and resources to help you maximize the efficiency and longevity of your unit. Rest assured that with our dedicated technical support, you can confidently rely on the performance and durability of our Cold Room Condensing Unit.
