Product name: G series Customized Coolroom Evaporator Freezer Room Equipment Air Cooler



1. Product Introduction:

  • Shell: High-quality steel plate applied with low-temperature resistant powder with strong corrosion resistance performance. Aluminum plate or stainless-steel shells can also be customized. All tube plates are made of 2.0 thick aluminum alloy plates in order to minimize the possibility of internal leakage caused by heat exchange copper tube wearing ascribed to thermal expansion and contraction.
  • Double-layer water tray: The outer water tray plate is in hinged lap design form, which facilitates inspection and maintenance. Ribbing slope design at the bottom of water tray could speed up drainage and avoid icing and corrosion. The inner water tray is covered with aluminum plate to reduce air bypass and improve fan efficiency and defrosting effect.
  • Heat exchange pipe: Efficient internal thread pipe from premium brand with optimized loop, and positive triangle staggered design in order to improve heat exchange efficiency.
  • Fin: Classic Europe-style sinusoid corrugated aluminum fin, which could improve air disturbance and enhance heat exchange capacity at air side significantly.
  • Fan: Customized high-power fan with external rotor (operating temperature: -40℃~60℃). Insulation class of motor: Grade F, which could ensure stability and reliability;
  • Defrosting: Stainless steel electric heating pipe with a low power and density. It is reasonably arranged inside coil and on the inner water pan to ensure more uniform heating effect, increase defrosting effect and prolong the service life of electric heating pipe.
  • Electrical junction box: Special customized electrical junction box, which could resist water, fire and high-voltage and be wired easily.
  • Factory testing: Air cooler is cleaned and inspected and has passed 25bar pressure holding test prior to delivery.
  • Sheet spacing: Standard values: 4.5mm, 6.0mm and 9.0mm, in order to meet different temperature and humidity requirements.
  • Different refrigerants: Meet the requirements of refrigerants including R404A, R507A, R134a, R22, etc.



2. Technical Parameters List
Technical parameters of efficient air cooler of electric defrosting ceiling Spacing: 4.5mm

Model Refrigerating capacity kW Tube volume Fan parameters Defrosting (electric heating)
SC1 SC2 dm3 风叶数量X直径
Number X diameter of fans		 功率W
Power W		 风量m3/h
Air volume m3/h 		射程m
Range m		 盘管kW*支
Coil kW * pcs		 水盘kW*支
Water tray kW * pcs
GUDL501C 6.7 4.6 3.2 1X∅500 1X414 5000 12 0.28*6 0.28*2
GUDL501D 8.1 5.6 4.3 1X∅500 1X460 4900 12 0.30*6 0.30*2
GUDL501E 9.8 6.7 5.4 1X∅500 1X460 4500 12 0.30*8 0.30*2
GUDL601E 16.6 11.4 9.2 1X∅600 1X780 7500 15 0.40*8 0.4*2
GUDL502D 22.2 15.3 11.8 2X∅500 2X460 11500 13 0.72*6 0.72*2
GUDL602D 28.9 19.9 14.7 2X∅600 2X780 16500 16 0.72*10 0.72*2
GUDL602E 33.8 23.3 18.4 2X∅600 2X780 15200 16 0.72*10 0.72*2
GUDL602F 37.8 26.1 22.1 2X∅600 2X780 14500 16 0.72*10 0.72*2
GUDL632D 40.7 28.1 23.7 2X∅630 2X800 19000 19 0.95*10 0.95*2
GUDL632E 44.1 30.4 26.9 2X∅630 2X800 18000 19 0.87*12 0.87*4
GUDL603F 54.5 37.6 32.3 3X∅600 3X780 20500 17 1.03*12 1.03*4
GUDL633F 66.8 46.1 38.8 3X∅630 3X800 25500 20 1.03*14 1.03*4


Technical parameters of efficient air cooler of electric defrosting ceiling Spacing: 6.0mm

Model   Refrigerating capacity kW Tube volume Fan parameters Defrosting (electric heating)
SC1 SC2 SC3 dm3 Number X diameter of fans Power W Air volume m3/h Range m Coil kW * pcs Water tray kW * pcs
GUDD501C 5.6 4.0 3.2 3.2 1X∅500 1X414 5200 12 0.28*8 0.28*2
GUDD501D 7.1 5.1 4.0 4.3 1X∅500 1X460 5100 12 0.30*8 0.30*2
GUDD501E 8.2 5.9 4.6 5.4 1X∅500 1X460 4800 12 0.30*10 0.30*2
GUDD601E 14.4 10.3 8.1 9.2 1X∅600 1X780 8200 15 0.40*10 0.4*2
GUDD502D 18.3 13.1 10.3 11.8 2X∅500 2X460 12000 13 0.72*8 0.72*2
GUDD602D 24.1 17.2 13.6 14.7 2X∅600 2X780 17000 16 0.72*12 0.72*2
GUDD602E 29.1 20.8 16.4 18.4 2X∅600 2X780 16400 16 0.72*12 0.72*2
GUDD602F 32.1 22.9 18.1 22.1 2X∅600 2X780 15500 16 0.72*12 0.72*2
GUDD632D 33.7 24.1 19.0 23.7 2X∅630 2X800 20000 19 0.95*12 0.95*2
GUDD632E 37.2 26.6 21.0 26.9 2X∅630 2X800 19000 19 0.87*12 0.87*4
GUDD603F 46.8 33.4 26.4 32.3 3X∅600 3X780 22000 17 1.03*12 1.03*4
GUDD633F 56.7 40.5 32.0 38.8 3X∅630 3X800 26500 20 1.03*14 1.03*4



Technical parameters of efficient air cooler of electric defrosting ceiling Spacing: 9.0mm

Model Refrigerating capacity kW Tube capacity Fan parameters Defrosting (electric heating)
SC3 SC4 SC5 dm3 Number X diameter of fans Power W Air volume m3/h Range m Coil kW * pcs Water tray kW * pcs
GUDJ501C 2.5 2.0 1.9 3.2 1X∅500 1X414 5300 12 0.28*8 0.28*2
GUDJ501D 3.3 2.6 2.5 4.3 1X∅500 1X460 5500 12 0.30*8 0.30*2
GUDJ501E 3.7 3.0 2.9 5.4 1X∅500 1X460 5100 12 0.30*10 0.30*2
GUDJ601E 6.5 5.2 5.0 9.2 1X∅600 1X780 8300 15 0.40*10 0.4*2
GUDJ502D 8.3 6.6 6.3 11.8 2X∅500 2X460 12500 13 0.72*8 0.72*2
GUDJ602D 10.8 8.5 7.8 14.7 2X∅600 2X780 17500 16 0.72*12 0.72*2
GUDJ602E 13.3 10.6 10.2 18.4 2X∅600 2X780 17000 16 0.72*12 0.72*2
GUDJ602F 14.5 11.6 11.1 22.1 2X∅600 2X780 16000 16 0.72*12 0.72*2
GUDJ632D 15.8 12.6 12.1 23.7 2X∅630 2X800 21000 19 0.95*12 0.95*2
GUDJ632E 17.7 14.1 13.5 26.9 2X∅630 2X800 20500 19 0.87*12 0.87*4
GUDJ603F 21.4 17.1 16.4 32.3 3X∅600 3X780 23000 17 1.03*12 1.03*4
GUDJ633F 25.4 20.3 19.5 38.8 3X∅630 3X800 27000 20 1.03*14 1.03*4


Overall dimensions and installation size of efficient air cooler of electric defrosting ceiling Spacing: 4.5mm

Model Interface specification (mm) Overall dimensions B*T*H Installation Dimensions weights Outline icon
Inlet pipe/return pipe Drainage (inches) L * W* H (mm): 610* 1,250*1,040 L E1 E2 E3 F kg
GUDL501C ∅12/∅22 G3/4 952*400*674 340 640 / / 126 36 A
GUDL501D ∅12/∅22 G3/4 952*400*674 340 640 / / 126 38 A
GUDL501E ∅12/∅22 G1 952*490*674 430 640 / / 126 44 A
GUDL601E ∅16/∅28 G1 1172*490*831 430 860 / / 126 56 A
GUDL502D ∅16/∅35 G1 1992*400*680 340 840 840 / 126 80 B
GUDL602D ∅22/∅42 G1-1/2 1992*400*831 340 840 840 / 126 95 B
GUDL602E ∅22/∅42 G1-1/2 1992*490*831 430 840 840 / 126 115 B
GUDL602F ∅22/∅42 G1-1/2 1992*490*831 430 840 840 / 126 125 B
GUDL632D ∅22/∅42 G1-1/2 2552*400*984 340 1120 1120 / 126 144 B
GUDL632E ∅22/∅42 G1-1/2 2352*490*984 430 1020 1020 / 126 160 B
GUDL603F ∅25/∅50 G1-1/2 2751*490*831 430 813 813 813 126 166 C
GUDL633F ∅25/∅50 G2 2751*490*984 430 813 813 813 126 196 C



Overall dimensions and installation size of efficient air cooler of electric defrosting ceiling Spacing: 6.0mm

Model Interface specification (mm) Overall dimensions B*T*H Installation Dimensions weights Outline icon
Inlet pipe/return pipe Drainage (inches) L * W* H (mm): 610* 1,250*1,040 L E1 E2 E3 F kg
GUDD501C ∅12/∅22 G3/4 952*400*674 340 640 / / 126 35 A
GUDD501D ∅12/∅22 G3/4 952*400*674 340 640 / / 126 37 A
GUDD501E ∅12/∅22 G1 952*490*674 430 640 / / 126 43 A
GUDD601E ∅16/∅28 G1 1172*490*831 430 860 / / 126 57 A
GUDD502D ∅16/∅35 G1 1992*400*680 340 840 840 / 126 78 B
GUDD602D ∅22/∅42 G1-1/2 1992*400*831 340 840 840 / 126 93 B
GUDD602E ∅22/∅42 G1-1/2 1992*490*831 430 840 840 / 126 112 B
GUDD602F ∅22/∅42 G1-1/2 1992*490*831 430 840 840 / 126 122 B
GUDD632D ∅22/∅42 G1-1/2 2552*400*984 340 1120 1120 / 126 140 B
GUDD632E ∅22/∅42 G1-1/2 2352*490*984 430 1020 1020 / 126 154 B
GUDD603F ∅25/∅50 G1-1/2 2751*490*831 430 813 813 813 126 162 C
GUDD633F ∅25/∅50 G2 2751*490*984 430 813 813 813 126 192 C


Overall dimensions and installation size of efficient air cooler of electric defrosting ceiling Spacing: 9.0mm

Model Interface specification (mm) Overall dimensions B*T*H Installation Dimensions weights Outline icon
Inlet pipe/return pipe Drainage (inches) L * W* H (mm): 610* 1,250*1,040 L E1 E2 E3 F kg
GUDJ501C ∅12/∅22 G3/4 952*400*674 340 640 / / 126 34 A
GUDJ501D ∅12/∅22 G3/4 952*400*674 340 640 / / 126 36 A
GUDJ501E ∅12/∅22 G1 952*490*674 430 640 / / 126 42 A
GUDJ601E ∅16/∅28 G1 1172*490*831 430 860 / / 126 55 A
GUDJ502D ∅16/∅35 G1 1992*400*680 340 840 840 / 126 76 B
GUDJ602D ∅22/∅42 G1-1/2 1992*400*831 340 840 840 / 126 94 B
GUDJ602E ∅22/∅42 G1-1/2 1992*490*831 430 840 840 / 126 114 B
GUDJ602F ∅22/∅42 G1-1/2 1992*490*831 430 840 840 / 126 121 B
GUDJ632D ∅22/∅42 G1-1/2 2552*400*984 340 1120 1120 / 126 139 B
GUDJ632E ∅22/∅42 G1-1/2 2352*490*984 430 1020 1020 / 126 160 B
GUDJ603F ∅25/∅50 G1-1/2 2751*490*831 430 813 813 813 126 162 C
GUDJ633F ∅25/∅50 G2 2751*490*984 430 813 813 813 126 190 C



3. Product Outline View

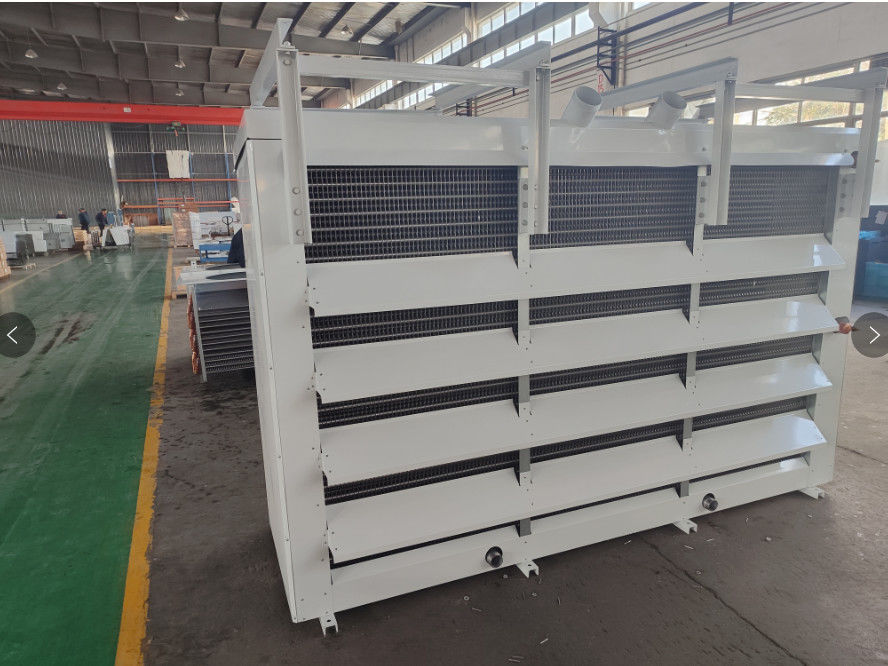

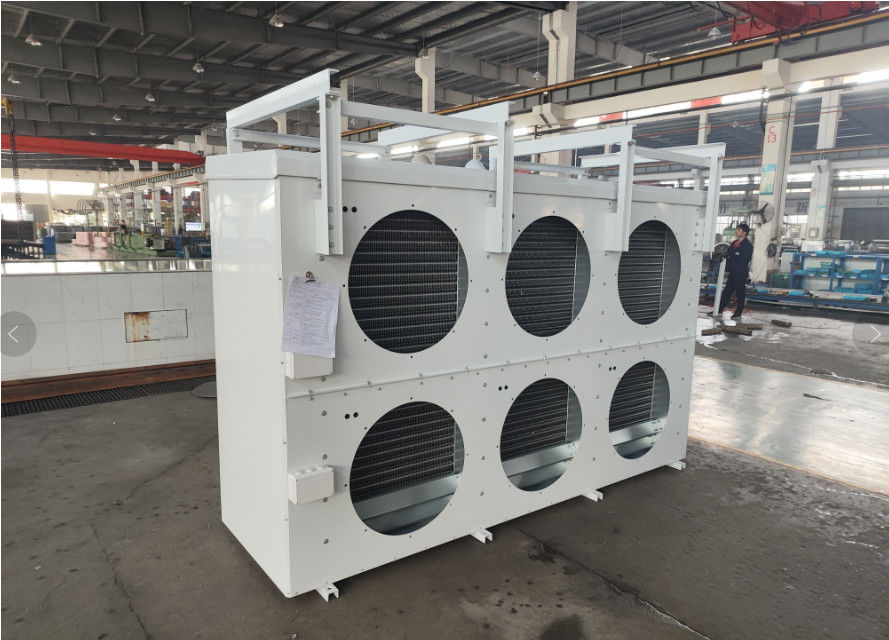

Customized Coolroom Evaporator No Fans 144kw Cooling Capacity 0

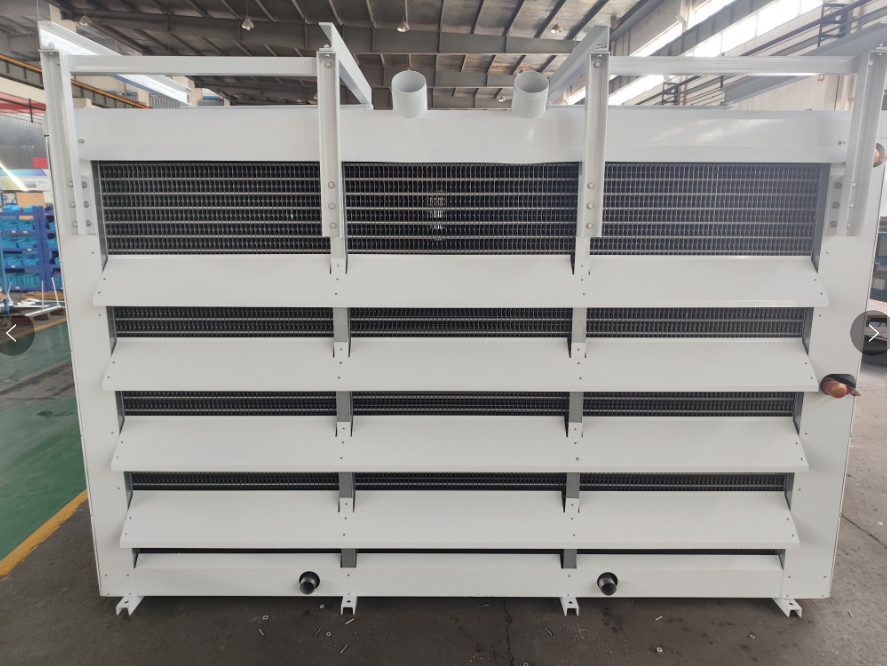

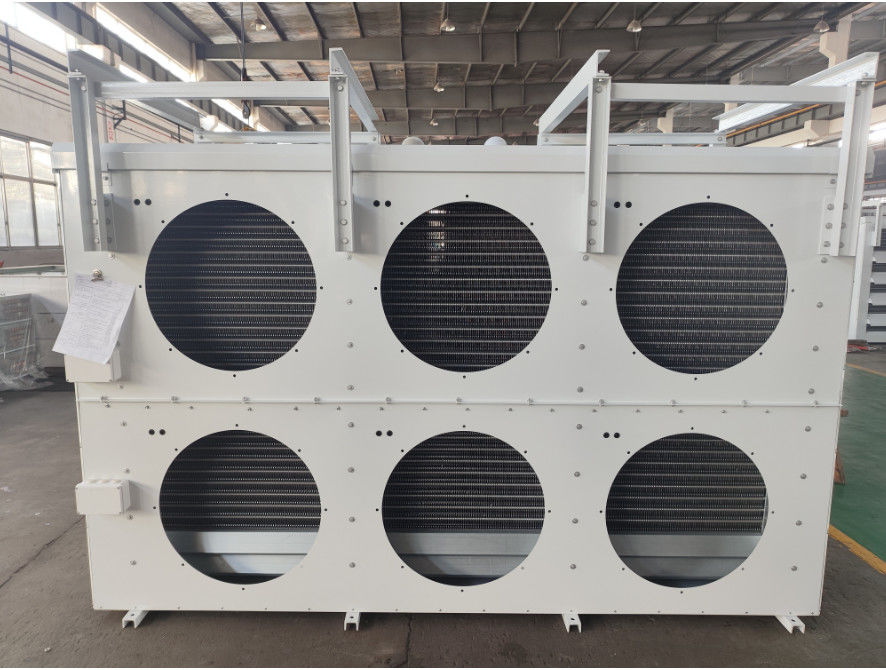

Customized Coolroom Evaporator No Fans 144kw Cooling Capacity 1

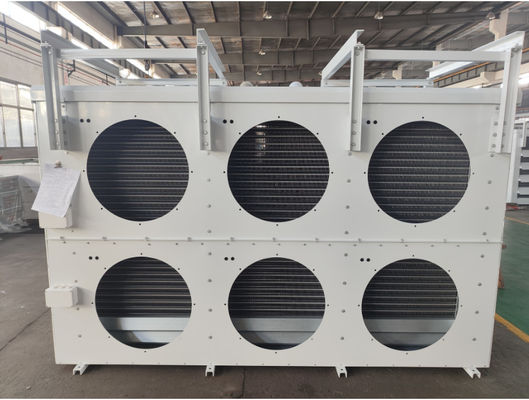

Customized Coolroom Evaporator No Fans 144kw Cooling Capacity 2



Note 1: Design Criteria

Standard heat exchange conditions Inlet air temperature Evaporation temperature Relative humidity Moisture absorption coefficient Degree of superheat
SC1 10℃ 0℃ 85% 1.35 6.5K
SC2 0℃ -8℃ 85% 1.15 5.2K
SC3 -18℃ -25℃ 95% 1.05 4.6K
SC4 -25℃ -31℃ 95% 1.01 3.9K
SC5 -34℃ -40℃ 95% 1.01 3.9K



Note 2: Refrigerant conversion coefficient

Refrigerant Working conditions R22 R404A R507 R134a
Correction factor SC1 0.95 1 1 0.93
Correction factor SC2 0.95 1 1 0.91
Correction factor SC3 0.95 1 1 0.85
