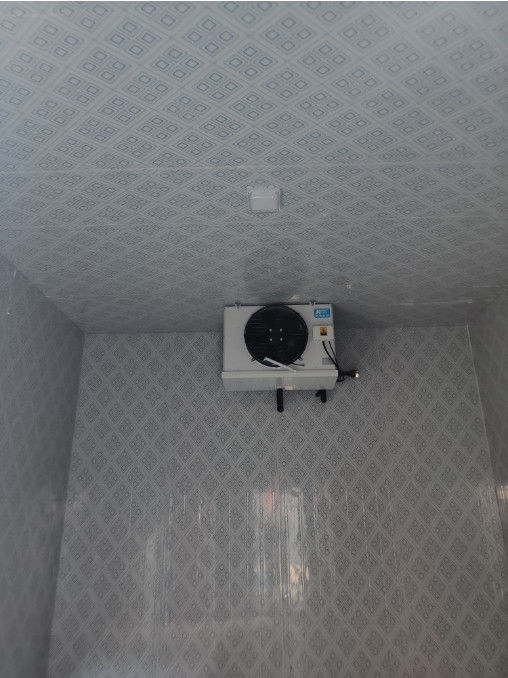

R507A R404a Refrigerant Cold Storage Evaporator Refrigeration System

Product name:Kaideli Evaporator Air Cooler Cold Room Evaporator





All the parts copper,fan, fin and outside we choose famous brand,also can customize:



2.How to choose model and what is specification?

Nomination:KUDL016-E2C

K(Kaideli)U(unit cooler)D(ceiling type)L/D/J(high/medium/low temp.)016(area of cooling surface)

-E(electric defrost)2/3/4(fan quantity)C(design type)

DL-High temperature type (cold room temperature 12℃~-2℃)fin space: 4.5mm
Model	Capacity	Area	Qty	Fan Φ	Airflow	Air press	Shot range	Power	Defrost Coil	Drip pan	Vol.
	(kW)	(m2)		(mm)	(m2/h)	(pa)	(m)	(W)	(kW/l)	(kW)	(V)
KUDL016-E2C	3.2	16	2	300	2×1563	90	10	2×75	0.36x4	0.36x2	380
KUDL020-E2C	4.1	20	2	300	2×1563	90	10	2×75	0.37x4	0.37x2	380
KUDL030-E2C	6.1	30	2	350	2×2290	90	10	2×140	0.46x4	0.46x2	380
KUDL040-E2C	8	40	2	350	2×2290	90	10	2×140	0.49x6	0.49x2	380
KUDL060-E2C	11.2	60	2	400	2×3400	90	13	2×180	0.51x6	0.51x2	380
KUDL080-E2C	16.2	80	2	500	2×6570	90	15	2×450	0.61x6	0.61x2	380
KUDL105-E2C	21.5	105	2	500	2×6570	90	15	2×450	0.81x6	0.81x2	380
KUDL135-E3C	27.6	135	3	500	3×6570	90	15	3×450	0.83x6	0.83x4	380
KUDL160-E3C	32.8	160	3	500	3×6570	90	15	3×450	1.0x6	1.0x4	380
KUDL185-E4C	37.6	185	4	500	4×6570	90	15	4×450	1.1x6	1.1x4	380
KUDL210-E4C	42.7	210	4	500	4×6570	90	15	4×450	1.1x8	1.1x4	380
KUDL260-E3C	52.9	260	3	550	3×8720	90	15	3×600	1.2x12	1.2x4	380
KUDL330-E4C	67.6	330	4	550	4×8720	90	15	4×600	1.1x14	1.1x4	380
KUDL400-E4C	82	400	4	600	4×10820	120	15	4×780	1.3x14	1.3x4	380
DD-Medium temperature type (cold room temperature -2℃~-10℃)fin space: 6.0mm
Model	Capacity	Area	Qty	Fan Φ	Airflow	Air press	Shot range	Power	Defrost Coil	Drip pan	Vol.
	(kW)	(m2)		(mm)	(m2/h)	(pa)	(m)	(W)	(kW/l)	(kW)	(V)
KUDD012-E2C	2.2	12	2	300	2×1563	90	10	2×75	0.36×6	0.36x2	380
KUDD015-E2C	2.8	15	2	300	2×1563	90	10	2×75	0.37×6	0.37x2	380
KUDD022-E2C	3.7	22	2	350	2×2290	90	10	2×140	0.46x6	0.46x2	380
KUDD030-E2C	5.7	30	2	350	2×2290	90	10	2×140	0.49x6	0.49x2	380
KUDD040-E2C	7.5	40	2	400	2×3400	90	13	2×180	0.51x8	0.51x2	380
KUDD060-E2C	11.4	60	2	500	2×6570	90	15	2×450	0.61x8	0.61x2	380
KUDD080-E2C	15.2	80	2	500	2×6570	90	15	2×450	0.81x8	0.81x2	380
KUDD100-E3C	18.7	100	3	500	3×6570	90	15	3×450	0.83x10	0.83x4	380
KUDD120-E3C	22.4	120	3	500	3×6570	90	15	3×450	1.0x8	1.0x4	380
KUDD140-E4C	26.2	140	4	500	4×6570	90	15	4×450	1.1x8	1.1x4	380
KUDD160-E4C	30	160	4	500	4×6570	90	15	4×450	1.1x10	1.1x4	380
KUDD200-E3C	37.4	200	3	550	3×8720	90	15	3×600	1.2x12	1.2x4	380
KUDD250-E4C	46.8	250	4	550	4×8720	90	15	4×600	1.1x14	1.1x4	380
KUDD300-E4C	56.2	300	4	600	4×10820	120	15	4×780	1.3x14	1.3x4	380
DJ- Low temperature type (cold room temperature -10℃~-31℃)fin space: 9.0mm
Model	Capacity	Area	Qty	Fan Φ	Airflow	Air press	Shot range	Power	Defrost Coil	Drip pan	Vol.
	(kW)	(m2)		(mm)	(m2/h)	(pa)	(m)	(W)	(kW/l)	(kW)	(V)
KUDJ008-E2C	1.2	8	2	300	2×1563	90	10	2×75	0.36×6	0.36x2	380
KUDJ010-E2C	1.5	10	2	300	2×1563	90	10	2×75	0.37×6	0.37x2	380
KUDJ015-E2C	2.3	15	2	350	2×2290	90	10	2×140	0.46x6	0.46x2	380
KUDJ020-E2C	3.3	20	2	350	2×2290	90	10	2×140	0.49x6	0.49x2	380
KUDJ030-E2C	4.8	30	2	400	2×3400	90	13	2×180	0.51x8	0.51x2	380
KUDJ040-E2C	7.1	40	2	500	2×6570	90	15	2×450	0.61x8	0.61x2	380
KUDJ055-E2C	8.9	55	2	500	2×6570	90	15	2×450	0.81x8	0.81x2	380
KUDJ070-E3C	11.5	70	3	500	3×6570	90	15	3×450	0.83x10	0.83x4	380
KUDJ085-E3C	14.3	85	3	500	3×6570	90	15	3×450	1.0x8	1.0x4	380
KUDJ100-E4C	17.1	100	4	500	4×6570	90	15	4×450	1.1x8	1.1x4	380
KUDJ115-E4C	19.6	115	4	500	4×6570	90	15	4×450	1.1x10	1.1x4	380
KUDJ140-E3C	23.8	140	3	550	3×8720	90	15	3×600	1.2x12	1.2x4	380
KUDJ170-E4C	29.8	170	4	550	4×8720	90	15	4×600	1.1x14	1.1x4	380
KUDJ210-E4C	35.7	210	4	600	4×10820	120	15	4×780	1.3x14	1.3x4	380



How to select correct evaparator:

Generally,Choose evaporator capacity=cold room cooling capacity *1.15

1.When the cold room temperature is around 0℃, select 4.5mm as fin space.

Evaporator choose=1.0*Q0

2.When the cold room temperature is around -18℃, select 6mm as fin space.

Evaparator choose=1.1*Q0

3.When the cold room temperature is around -25℃, select 9mm as fin space.

Evaparator choose=1.27*Q0

Remarks: The water defrost and hot gas defrost type are also optional.

Customized specification leave me message for details.

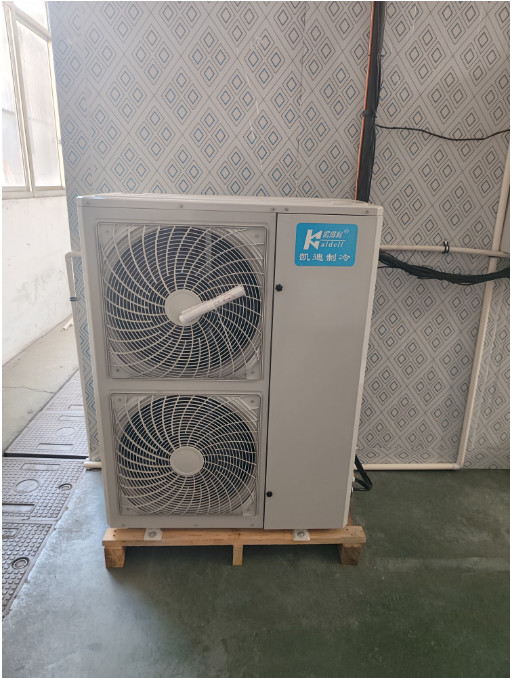

3.Want to know other related products?-click picture for detailed specification







4.How to assure quality? Any procedure?

Our QC department will make sure of each step



5.Do you factory?
We are factory established in 1995 and through 28years developed,welcomed by all our customers.Because of all your support now we are a big family of more than 300 people,covered 50000 square meters,and your supporting is very important of continuing our dream of eating fresh and healthy food.





6.Do you attend exhibition?

Each year we will attend domestic national and foreign exhibition,also we will support our agent to attend exhibition,welcome to join us.

7.Why choose us

Professional:28 years focus one thing-refrigeration equipments

Material we use sufficient

Certificate:CE, ISO, and cetiifcate of producing special pressure equipment



8.Projects reference?

9.FAQ

1, Q:Where is your factory address?

A:We are factory and located in refrigeration equipment producing base Shengzhou,Zhejiang province.



2, Q: What is your package?

A: Our package comply to custom require not include original wood.



3, Q:What is your MOQ?

A: Ordinary products can order from 1 set.



4, Q: Can you offer sample?

A: Yes,we can offer sample.and cost and delivery at your charge.



5, Q:I can't find products on your list?

A: Please contact me directly.



6,Q:How can i confirm your factory?

A: We have third party verified document of Bureau Veritas report,you can download in company page or leave me message to get.
