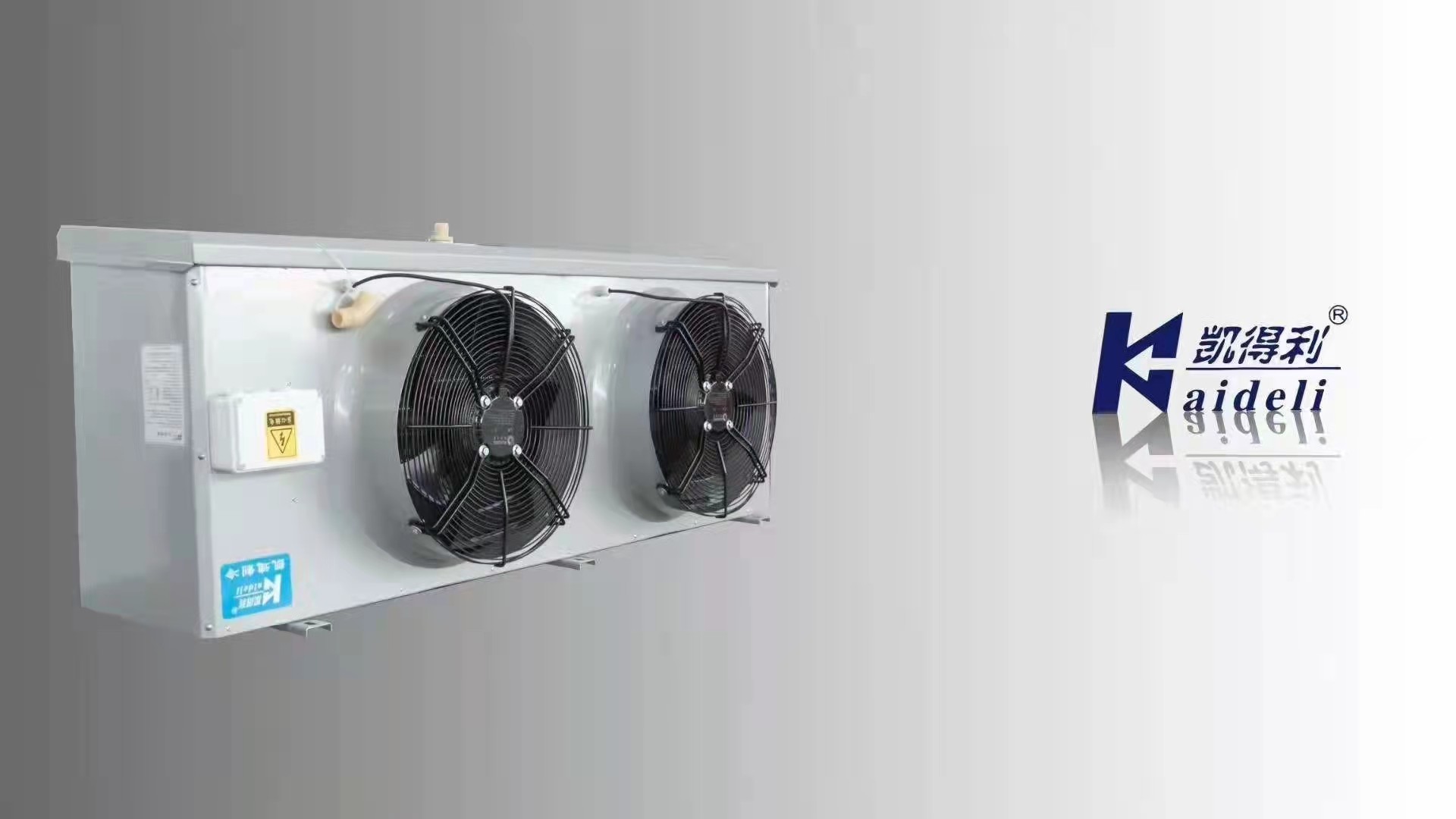

EH Cold Room Series Commercial Ceiling-type Air Cooler Air Machine With Refrigerant

Applicable Industries:

chain-cold logistics,Slaughtering and quick-freezing,Pharmaceutical and chemical,Supermarket retailing,industrial chilled water,centralized kitchen,Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops,Hotel Catering,Flower Preservation,Food freezing and refrigeration,

Community construction.

Factory Visit add: Zone A,Industrial park,Ganlin Town, ShengzhouCity,Zhejiang , China.

Material: Magnesium alloy shell/ inner copper tube/ stainless steel/

Compressor : Emerson , Bitzer , Frascold , Invotech, etc.

Voltage,frequency: 380v 50hz/220v 50hz.

Warranty: 1year.

Product Main Features:

• Casing: Made of high-quality galvanized steel with a surface coating of silver-gray plastic (RAL9006), providing strong corrosion resistance. The side panels and outer water pan are designed with a hinge structure for convenient and quick operation.

• Heat Exchanger End Plate: Made of aluminum plate, which effectively protects the copper tubes and reduces weight.

• Double-layer Water Pan Design: The outer water pan features an angled, ribbed structure for smooth drainage without dead corners. The inner water pan is made of an aluminum plate in a trough shape, allowing condensate or defrost water to flow directly into the outer water pan's drain outlet.

• High-Round Air Duct Design: The air duct is designed with an integral stretching process, resulting in a large-radius, high-round shape for better airflow guidance.

• Landing Support Feet: For fan specifications with a diameter of 500mm, landing support feet are installed for easy installation.

• Coil: The coil has a triangular arrangement with a tube spacing of 38.1mm × 33mm, offering high heat transfer efficiency.

• Aluminum Foil and Aluminum Fins: Hydrophilic aluminum foil with corrugated aluminum fins, available in fin spacing of 4.0mm, 6.0mm, and 9.0mm, to meet different temperature and humidity requirements.

• Fan: High-power external rotor fan, with a working temperature range of -30°C to 60°C. Fan sizes include φ350, φ400, and φ500, forming a series of different specifications for more user choices.Application Scope:The unit and fan are suitable for the following applications: supermarkets, pharmaceuticals, chemicals, food freezing and refrigeration, flower preservation, and cold chain logistics.
