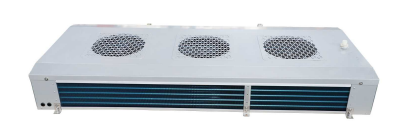

Commercial Dual Discharge Air Cooler with Ultra-thin Structure and Double Drain Trays for Ethylene Glycol Cooling

Product OvervIew:
EcG series air cooler with ethylene glycol developed by our company is designed with ultra-thin structure, with air inletat
bottom and air supply on both sides, which is mainly used for cold store with ethylene glycol aqueous solution as
refrigerant. The product installation space is small, which is mainly used in the processing room with operators with
low-temperature ethylene glycol aqueous solution as the refrigerant. EcG series air cooler can meet the requirements of
cold store at about 10C, 0eC and -18C respectively. This series of products has the following characteristics:
1. Enclosure: Made of aluminum plate sprayed with powder coating (sllver gray RAL9oo6), featuring high corrosion
resistance and lightweight;
2.The side sheet of the heat exchanger is made of aluminum plate, which can effectively protect the copper tube and
reduce the weight;
3. Double drain trays design: The outer water tray is designed with overall hinge structure, which is convenient for operation;
the inner water tray is designed with sink structure made of aluminum plate, and the condensed water or defrost water is
directly discharged into the drainage outlet of the outer water tray via the specially designed water trough;
4. Coil: Tube spacing 38.1 x33 in triangle arrangement, with high heat transfer efficiency;
5. Corrugated aluminum sheet made of hydrophilic aluminum foil, with the sheet spacing of 4.0mm and 6.0mm to meet the
requirements of different temperatures and humidity;
6. Fan: Specifications:中350, high-speed and low-speed design in line with requirements of differentnoises, operating
temperature:-30-60C,quantity offans: 1-4;
7. Defrosting: The electric defrosting is adopted in the standard manner, and the stainless steel heating tubes are
distributed in the coil fins and the inner water tray, which can bring about desirable defrosting effect
8. The lP65 waterproofjunction box and waterproof connectors are used, with better waterproofing; the fan and the heating
pipe are wired separately, which can lead to high reliability;
9. It is subjected to strict factory pressure test at the pressure of 23bar;
