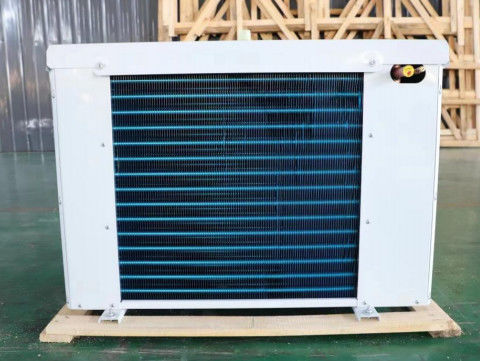

G series save energy unit cooler high efficiency use for cold room

Basic Information

Place of Origin:	China
Brand Name:	Kaideli
Certification:	CE,ISO9001-2008
Model Number:	GUDL,GUDD,GUDJ

Minimum Order Quantity:	1 Piece
Price:	$100.00 - $1,700.00/sets
Packaging Details:	Wood box packing
Delivery Time:	10-15 days
Payment Terms:	TT,LC,Western Union
Supply Ability:	2000 Set/Sets per Month

Get Best Price Contact Now

Applicable Industries:	Hotels, Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Retail, Food Shop, Construction Works , Food & Beverage Shops，Logistics Cold Chain	Showroom Location:	Viet Nam, Philippines, Mexico, Thailand, Kazakhstan, Nigeria, Uzbekistan, Tajikistan
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Type:	Evaporator	Application:	Refrigeration Parts
Warranty:	1 Year	Refrigerant:	R22/R404A
Material:	Copper	Cooling Capacity:	1.2-144kw
High Temperatre:	4.5mm	Medium Temperature:	6.0mm
Low Temperature:	9mm	Voltage:	220/380
Brand:	Kaideli	Test:	2.6Mpa
Fan:	Axial	After Warranty Service:	Online Support
Local Service Location:	None	Marketing Type:	New Product 2020
After-sales Service Provided:	Online Support	Port:	Ningbo/Shanghai/Guangzhou
Conditon:	New	Color:	Option (White,green,black)

•Founded in 1995, Zhejiang Kaidi Refrigeration Equipment Co., Ltd. is a large manufacturing company with a full organization of research and development, processing and manufacturing, sales and commissioning services.

The headquarter is located in Shengzhou City, Zhejiang Province, covers an area of 50,000 square meters. It is equipped with advanced CNC processing equipment and high standard laboratories, also has experienced professional technical team and manufacturing team. We successfully obtained the certificates of ISO 9001,CE , industrial product production license and the special equipment manufacturing license from government (pressure vessel D1, D2).

1. Product Introduction:

Shell: High-quality steel plate applied with low-temperature resistant powder with strong corrosion resistance performance. Aluminum plate or stainless-steel shells can also be customized. All tube plates are made of 2.0 thick aluminum alloy plates in order to minimize the possibility of internal leakage caused by heat exchange copper tube wearing ascribed to thermal expansion and contraction.

Double-layer water tray: The outer water tray plate is in hinged lap design form, which facilitates inspection and maintenance. Ribbing slope design at the bottom of water tray could speed up drainage and avoid icing and corrosion. The inner water tray is covered with aluminum plate to reduce air bypass and improve fan efficiency and defrosting effect.
Heat exchange pipe: Efficient internal thread pipe from premium brand with optimized loop, and positive triangle staggered design in order to improve heat exchange efficiency.
Fin: Classic Europe-style sinusoid corrugated aluminum fin, which could improve air disturbance and enhance heat exchange capacity at air side significantly.
Fan: Customized high-power fan with external rotor (operating temperature: -40℃~60℃). Insulation class of motor: Grade F, which could ensure stability and reliability;
Defrosting: Stainless steel electric heating pipe with a low power and density. It is reasonably arranged inside coil and on the inner water pan to ensure more uniform heating effect, increase defrosting effect and prolong the service life of electric heating pipe.
Electrical junction box: Special customized electrical junction box, which could resist water, fire and high-voltage and be wired easily.
Factory testing: Air cooler is cleaned and inspected and has passed 25bar pressure holding test prior to delivery.
Sheet spacing: Standard values: 4.5mm, 6.0mm and 9.0mm, in order to meet different temperature and humidity requirements.
Different refrigerants: Meet the requirements of refrigerants including R404A, R507A, R134a, R22, etc.

2. Technical Parameters List
Technical parameters of efficient air cooler of electric defrosting ceiling Spacing: 4.5mm

Model	Refrigerating capacity kW		Tube volume	Fan parameters				Defrosting (electric heating)
Model	SC1	SC2	dm³	风叶数量X直径 Number X diameter of fans	功率W Power W	风量m³/h Air volume m³/h	射程m Range m	*盘管kW支 Coil kW * pcs**	*水盘kW支 Water tray kW * pcs**
GUDL501C	6.7	4.6	3.2	1X∅500	1X414	5000	12	0.28*6	0.28*2
GUDL501D	8.1	5.6	4.3	1X∅500	1X460	4900	12	0.30*6	0.30*2
GUDL501E	9.8	6.7	5.4	1X∅500	1X460	4500	12	0.30*8	0.30*2
GUDL601E	16.6	11.4	9.2	1X∅600	1X780	7500	15	0.40*8	0.4*2
GUDL502D	22.2	15.3	11.8	2X∅500	2X460	11500	13	0.72*6	0.72*2
GUDL602D	28.9	19.9	14.7	2X∅600	2X780	16500	16	0.72*10	0.72*2
GUDL602E	33.8	23.3	18.4	2X∅600	2X780	15200	16	0.72*10	0.72*2
GUDL602F	37.8	26.1	22.1	2X∅600	2X780	14500	16	0.72*10	0.72*2
GUDL632D	40.7	28.1	23.7	2X∅630	2X800	19000	19	0.95*10	0.95*2
GUDL632E	44.1	30.4	26.9	2X∅630	2X800	18000	19	0.87*12	0.87*4
GUDL603F	54.5	37.6	32.3	3X∅600	3X780	20500	17	1.03*12	1.03*4
GUDL633F	66.8	46.1	38.8	3X∅630	3X800	25500	20	1.03*14	1.03*4

Technical parameters of efficient air cooler of electric defrosting ceiling Spacing: 6.0mm

Model		Refrigerating capacity kW		Tube volume	Fan parameters				Defrosting (electric heating)
Model	SC1	SC2	SC3	dm³	Number X diameter of fans	Power W	Air volume m³/h	Range m	*Coil kW pcs**	*Water tray kW pcs**
GUDD501C	5.6	4.0	3.2	3.2	1X∅500	1X414	5200	12	0.28*8	0.28*2
GUDD501D	7.1	5.1	4.0	4.3	1X∅500	1X460	5100	12	0.30*8	0.30*2
GUDD501E	8.2	5.9	4.6	5.4	1X∅500	1X460	4800	12	0.30*10	0.30*2
GUDD601E	14.4	10.3	8.1	9.2	1X∅600	1X780	8200	15	0.40*10	0.4*2
GUDD502D	18.3	13.1	10.3	11.8	2X∅500	2X460	12000	13	0.72*8	0.72*2
GUDD602D	24.1	17.2	13.6	14.7	2X∅600	2X780	17000	16	0.72*12	0.72*2
GUDD602E	29.1	20.8	16.4	18.4	2X∅600	2X780	16400	16	0.72*12	0.72*2
GUDD602F	32.1	22.9	18.1	22.1	2X∅600	2X780	15500	16	0.72*12	0.72*2
GUDD632D	33.7	24.1	19.0	23.7	2X∅630	2X800	20000	19	0.95*12	0.95*2
GUDD632E	37.2	26.6	21.0	26.9	2X∅630	2X800	19000	19	0.87*12	0.87*4
GUDD603F	46.8	33.4	26.4	32.3	3X∅600	3X780	22000	17	1.03*12	1.03*4
GUDD633F	56.7	40.5	32.0	38.8	3X∅630	3X800	26500	20	1.03*14	1.03*4

Technical parameters of efficient air cooler of electric defrosting ceiling Spacing: 9.0mm

Model	Refrigerating capacity kW			Tube capacity	Fan parameters				Defrosting (electric heating)
Model	SC3	SC4	SC5	dm³	Number X diameter of fans	Power W	Air volume m³/h	Range m	*Coil kW pcs**	*Water tray kW pcs**
GUDJ501C	2.5	2.0	1.9	3.2	1X∅500	1X414	5300	12	0.28*8	0.28*2
GUDJ501D	3.3	2.6	2.5	4.3	1X∅500	1X460	5500	12	0.30*8	0.30*2
GUDJ501E	3.7	3.0	2.9	5.4	1X∅500	1X460	5100	12	0.30*10	0.30*2
GUDJ601E	6.5	5.2	5.0	9.2	1X∅600	1X780	8300	15	0.40*10	0.4*2
GUDJ502D	8.3	6.6	6.3	11.8	2X∅500	2X460	12500	13	0.72*8	0.72*2
GUDJ602D	10.8	8.5	7.8	14.7	2X∅600	2X780	17500	16	0.72*12	0.72*2
GUDJ602E	13.3	10.6	10.2	18.4	2X∅600	2X780	17000	16	0.72*12	0.72*2
GUDJ602F	14.5	11.6	11.1	22.1	2X∅600	2X780	16000	16	0.72*12	0.72*2
GUDJ632D	15.8	12.6	12.1	23.7	2X∅630	2X800	21000	19	0.95*12	0.95*2
GUDJ632E	17.7	14.1	13.5	26.9	2X∅630	2X800	20500	19	0.87*12	0.87*4
GUDJ603F	21.4	17.1	16.4	32.3	3X∅600	3X780	23000	17	1.03*12	1.03*4
GUDJ633F	25.4	20.3	19.5	38.8	3X∅630	3X800	27000	20	1.03*14	1.03*4

Overall dimensions and installation size of efficient air cooler of electric defrosting ceiling Spacing: 4.5mm

Model	Interface specification (mm)		*Overall dimensions BTH*	Installation Dimensions					weights	Outline icon
Model	Inlet pipe/return pipe	Drainage (inches)	*L W* H (mm): 610* 1,2501,040*	L	E1	E2	E3	F	kg	Outline icon
GUDL501C	∅12/∅22	G3/4	952400674	340	640	/	/	126	36	A
GUDL501D	∅12/∅22	G3/4	952400674	340	640	/	/	126	38	A
GUDL501E	∅12/∅22	G1	952490674	430	640	/	/	126	44	A
GUDL601E	∅16/∅28	G1	1172490831	430	860	/	/	126	56	A
GUDL502D	∅16/∅35	G1	1992400680	340	840	840	/	126	80	B
GUDL602D	∅22/∅42	G1-1/2	1992400831	340	840	840	/	126	95	B
GUDL602E	∅22/∅42	G1-1/2	1992490831	430	840	840	/	126	115	B
GUDL602F	∅22/∅42	G1-1/2	1992490831	430	840	840	/	126	125	B
GUDL632D	∅22/∅42	G1-1/2	2552400984	340	1120	1120	/	126	144	B
GUDL632E	∅22/∅42	G1-1/2	2352490984	430	1020	1020	/	126	160	B
GUDL603F	∅25/∅50	G1-1/2	2751490831	430	813	813	813	126	166	C
GUDL633F	∅25/∅50	G2	2751490984	430	813	813	813	126	196	C

Overall dimensions and installation size of efficient air cooler of electric defrosting ceiling Spacing: 6.0mm

Model	Interface specification (mm)		*Overall dimensions BTH*	Installation Dimensions					weights	Outline icon
Model	Inlet pipe/return pipe	Drainage (inches)	*L W* H (mm): 610* 1,2501,040*	L	E1	E2	E3	F	kg	Outline icon
GUDD501C	∅12/∅22	G3/4	952400674	340	640	/	/	126	35	A
GUDD501D	∅12/∅22	G3/4	952400674	340	640	/	/	126	37	A
GUDD501E	∅12/∅22	G1	952490674	430	640	/	/	126	43	A
GUDD601E	∅16/∅28	G1	1172490831	430	860	/	/	126	57	A
GUDD502D	∅16/∅35	G1	1992400680	340	840	840	/	126	78	B
GUDD602D	∅22/∅42	G1-1/2	1992400831	340	840	840	/	126	93	B
GUDD602E	∅22/∅42	G1-1/2	1992490831	430	840	840	/	126	112	B
GUDD602F	∅22/∅42	G1-1/2	1992490831	430	840	840	/	126	122	B
GUDD632D	∅22/∅42	G1-1/2	2552400984	340	1120	1120	/	126	140	B
GUDD632E	∅22/∅42	G1-1/2	2352490984	430	1020	1020	/	126	154	B
GUDD603F	∅25/∅50	G1-1/2	2751490831	430	813	813	813	126	162	C
GUDD633F	∅25/∅50	G2	2751490984	430	813	813	813	126	192	C

Overall dimensions and installation size of efficient air cooler of electric defrosting ceiling Spacing: 9.0mm

Model	Interface specification (mm)		*Overall dimensions BTH*	Installation Dimensions					weights	Outline icon
Model	Inlet pipe/return pipe	Drainage (inches)	*L W* H (mm): 610* 1,2501,040*	L	E1	E2	E3	F	kg	Outline icon
GUDJ501C	∅12/∅22	G3/4	952400674	340	640	/	/	126	34	A
GUDJ501D	∅12/∅22	G3/4	952400674	340	640	/	/	126	36	A
GUDJ501E	∅12/∅22	G1	952490674	430	640	/	/	126	42	A
GUDJ601E	∅16/∅28	G1	1172490831	430	860	/	/	126	55	A
GUDJ502D	∅16/∅35	G1	1992400680	340	840	840	/	126	76	B
GUDJ602D	∅22/∅42	G1-1/2	1992400831	340	840	840	/	126	94	B
GUDJ602E	∅22/∅42	G1-1/2	1992490831	430	840	840	/	126	114	B
GUDJ602F	∅22/∅42	G1-1/2	1992490831	430	840	840	/	126	121	B
GUDJ632D	∅22/∅42	G1-1/2	2552400984	340	1120	1120	/	126	139	B
GUDJ632E	∅22/∅42	G1-1/2	2352490984	430	1020	1020	/	126	160	B
GUDJ603F	∅25/∅50	G1-1/2	2751490831	430	813	813	813	126	162	C
GUDJ633F	∅25/∅50	G2	2751490984	430	813	813	813	126	190	C

3. Product Outline View

G series save energy unit cooler high efficiency use for cold room 0

G series save energy unit cooler high efficiency use for cold room 1

G series save energy unit cooler high efficiency use for cold room 2

Note 1: Design Criteria

Standard heat exchange conditions	Inlet air temperature	Evaporation temperature	Relative humidity	Moisture absorption coefficient	Degree of superheat
SC1	10℃	0℃	85%	1.35	6.5K
SC2	0℃	-8℃	85%	1.15	5.2K
SC3	-18℃	-25℃	95%	1.05	4.6K
SC4	-25℃	-31℃	95%	1.01	3.9K
SC5	-34℃	-40℃	95%	1.01	3.9K

Note 2: Refrigerant conversion coefficient

Refrigerant	Working conditions	R22	R404A	R507	R134a
Correction factor	SC1	0.95	1	1	0.93
Correction factor	SC2	0.95	1	1	0.91
Correction factor	SC3	0.95	1	1	0.85
